The work so far ...
Here's a photographic update of the work done so far in Studio 3. This includes stripping out the existing floor and ceiling, stiffening the internal surfaces of the room, building a wooden frame for the acoustic treatment, fitting acoustic absorption, changing the airflow routing, putting in first-fix electrical cabling and fittings, fitting a wooden floor, fitting the wooden front wall, and fitting the rack and desk. Not much more to go now!

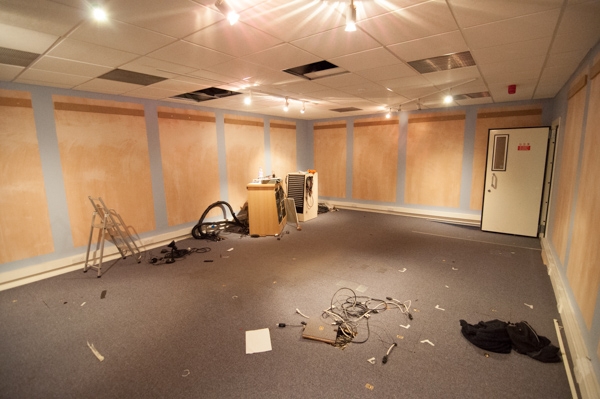

The room once the old acoustic absorbers were removed:
![](images/DSC_7872.jpg)

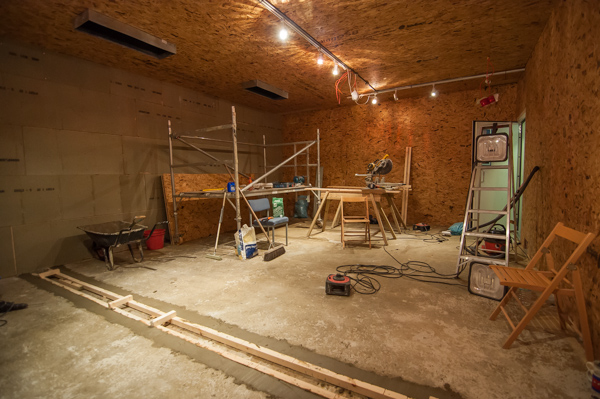

After the floor and ceiling were removed, a cable channel dug, and wood added to the internal walls to stiffen the structure:
![](images/DSC_7874.jpg)

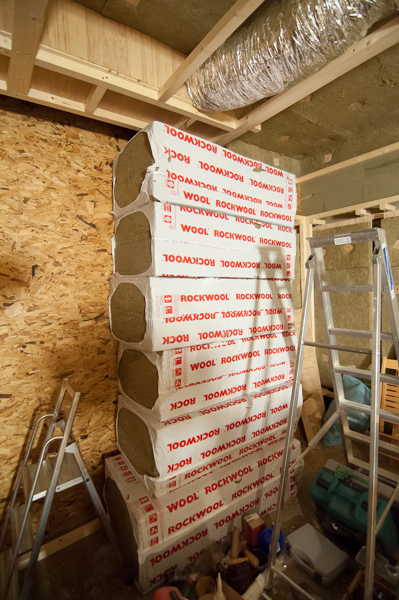

This job's going to need rockwool. Lots of rockwool.
![](images/DSC_7940.jpg)

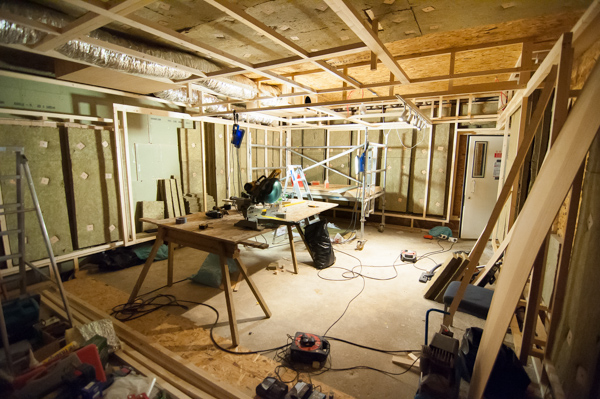

The internal timber framing that will hold the acoustic absorbers and will eventually be faced with fabric. Some absorber panels already in place:
![](images/DSC_7929.jpg)

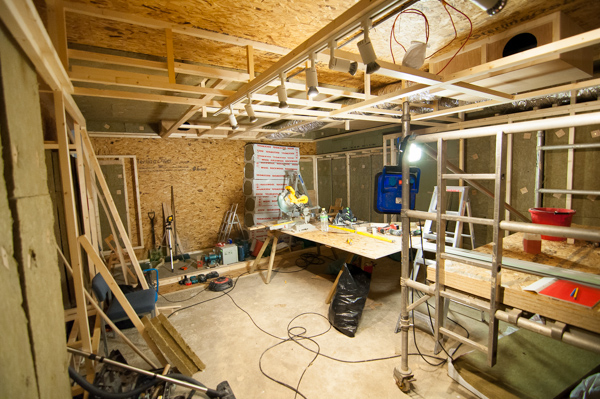

The view from the entrance door at a similar stage:
![](images/DSC_7930.jpg)

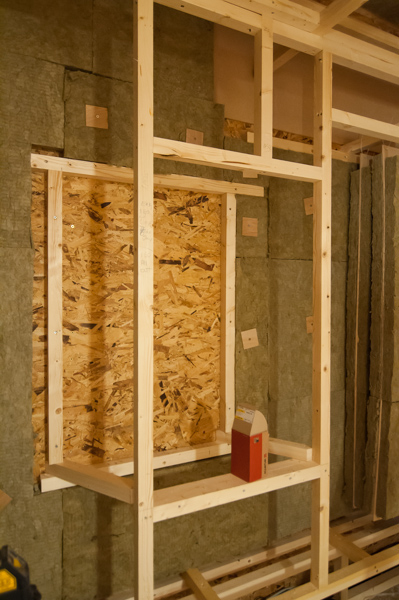

Frame for one of the surround speakers:
![](images/DSC_7945.jpg)

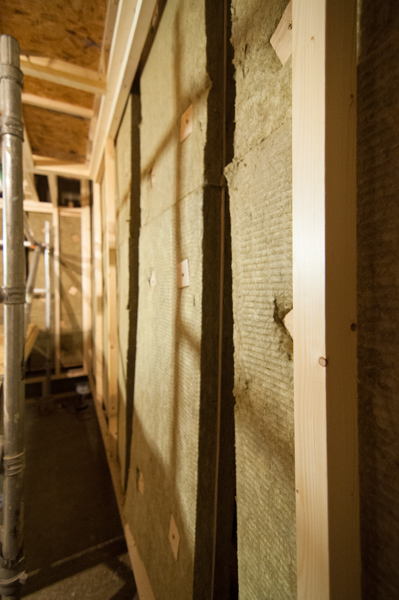

A close-up of the hanging absorbers at the back of the room. These are plywood panels faced with rockwool that are suspended from the top of the wooden frame. They absorb low-frequency energy by converting pressure variations on the front surface into movement of the panels.
![](images/DSC_7934.jpg)

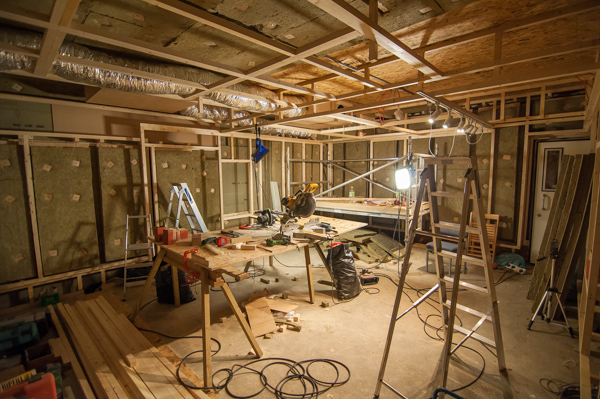

Most of the hanging absorption panels in place, and pipes redirecting the airflow fitted in the ceiling:
![](images/DSC_7942.jpg)

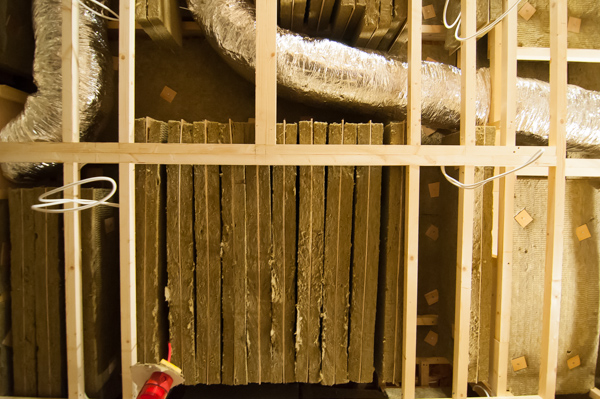

Close-up of the ceiling treatment, showing hanging absorbers and airflow pipes:
![](images/DSC_7953.jpg)

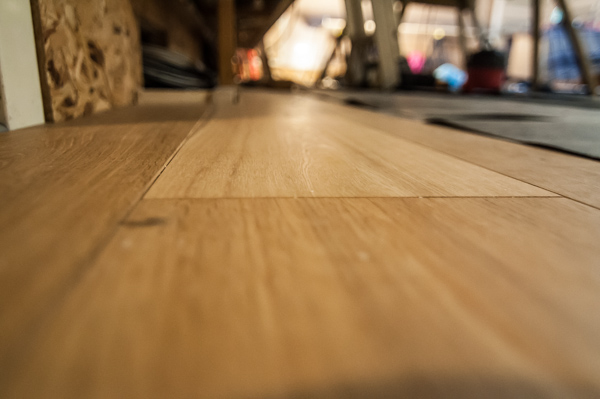

Oak floor fitted:
![](images/DSC_7960.jpg)

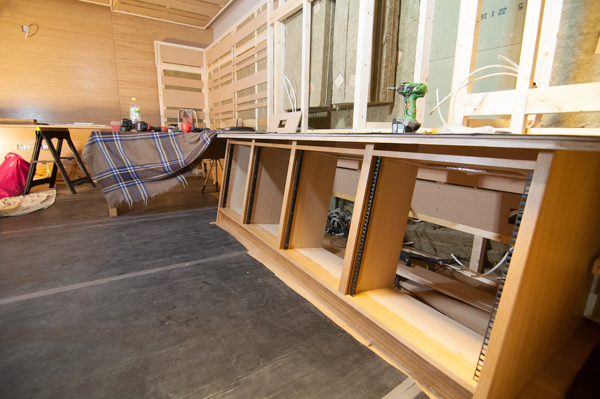

The racks being installed. Imagine these full of lovely outboard gear soon:
![](images/DSC_7961.jpg)

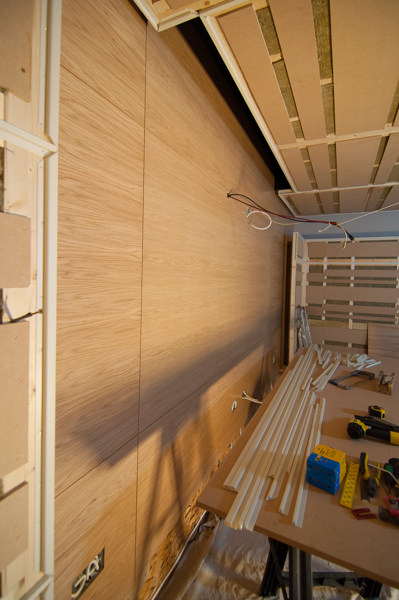

A close-up of the wooden front wall:
![](images/DSC_7962.jpg)

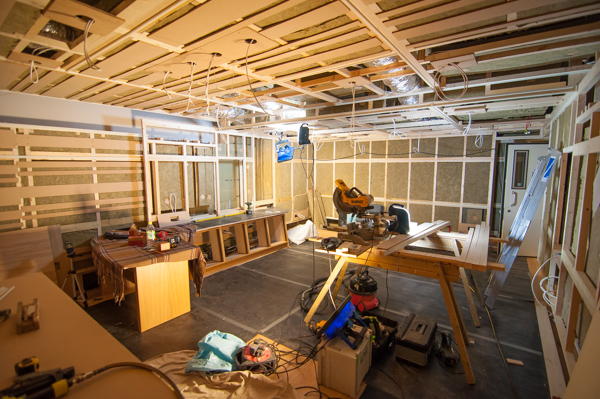

Most absorption fitted, and furniture starting to be installed:
![](images/DSC_7956.jpg)

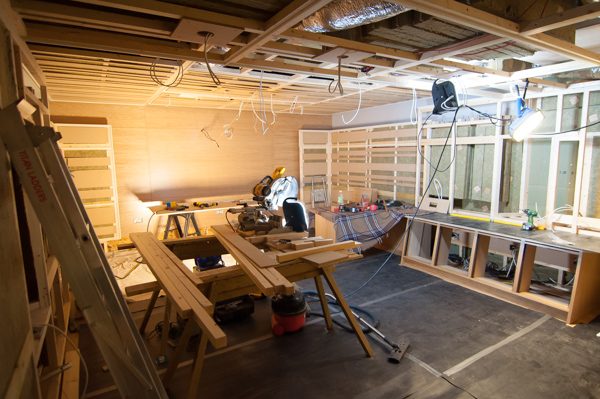

The view from the entrance door at a similar stage:
![](images/DSC_7959.jpg)
